Events#

The data filter template reports status changes via JavaScript Events. These events can be listened for using ADR features like the User Defined Content Block template.

Supported Events#

  • filter_event: Emitted every time users complete a filter change action. The event records current status information that may be useful for external report generation manipulation. Currently supported data keys:

    • tag: A key value map for the filtered tag(s) and tag value(s) for multiple tags filtering.

    • single-tag: A key value map for the filtered tag(s) and tag value(s) for single tag filtering.

    • plot_range_x: A min/max value pair on the x axis of the filtered chart.

    • plot_range_y: A min/max value pair on the y axis of the filtered chart.

    • template_guid: A unique id for the data filter layout

Note

Note the filter_event stores information in a JavaScript Map object. To access the data value, using .get("[key]") to access further information.

To access the event data add an event listener at the document or any element that is at a higher hierarchy level than the data filter layout in the DOM tree. For example, listen and print out all event data on filtering:

document.addEventListener("filter_event",
        function(e){console.log(e.detail) /* Other data manipulation */})

Example#

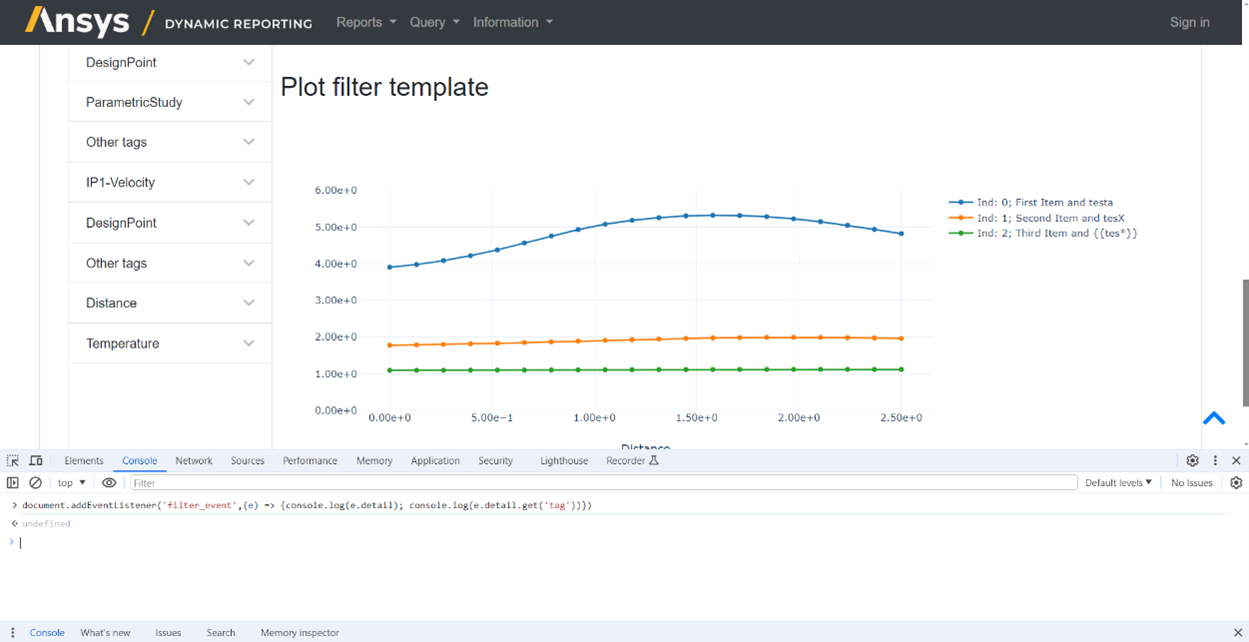

  1. Add an event listener to access and print the event data on the console.

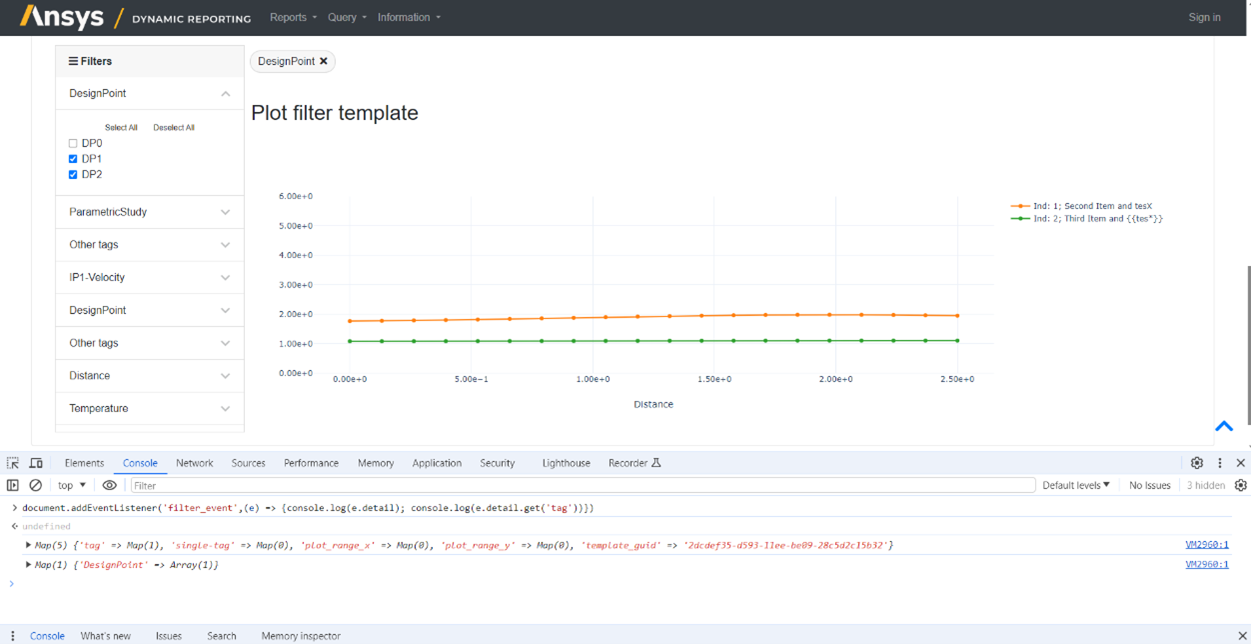

  2. The console prints out the event data on filter change
